250V TT(P)YCY-S

In Stock-
SKU:
PRODUCT-73
3.40476
Category:IEC / JIS Standard - Tags:
Description:
Application
  • Instrument circuit up to 250V, instrument safe systems.
  • Fixed installation for instrument, communication, control and alarm system in both explosion risk and safe areas, general purposes.

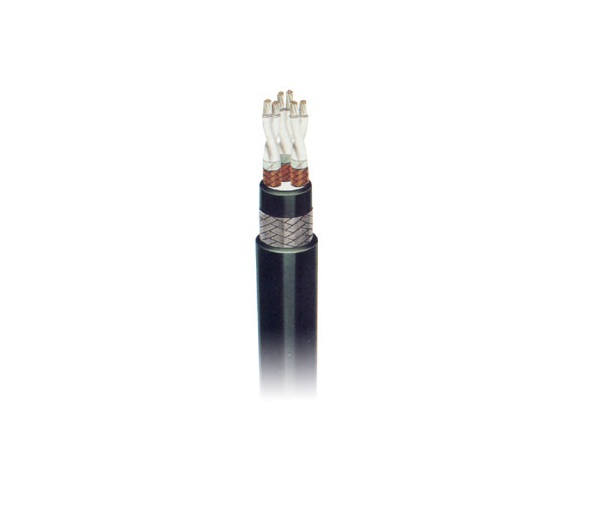

Construction Details

1) Conductor : Plain annealed copper wires, stranded
2) Insulation : PVC insulation identified
3) Pair / Triple / Quad twisting
4) Individual Copper wire shield braid : End of ‘-S’ type
5) Cabling with filler
6) Common Copper wire shield braid : End of ‘S’ type
7) PVC sheath
8) Metal wire armour : Galvanized steel wire braiding
9) Paint : In case of protective covered cable, paint is dispensable.
10) PVC protective covering

Standards Applied
·         Design guideline : JIS C 3410 (1999)
·      Material properties :JIS C 3410 Insulation, PVC
                                           JIS C 3410 Sheath, PVC
  • Flame retardant :  IEC 60332-1
                                    IEC 60332-3, Cat.A, ‘FA-‘ type only
  • Cable marking of cold properties :
-          ‘ICE’ type :CSA C22.2 No. 03, Cold bending - 40°C, Cold impact - 35°C
-          ‘-35DEG.’ Type : CSA C22.2 No. 03, Cold bending -35°C
-          Any other cable marking can be applicable, when purchaser required

Identification of color
·         Identification of insulated cores
-         A Wire : Numbering on White colored insulation
-         B Wire : White
-         C Wire : White
-         D Wire : White
